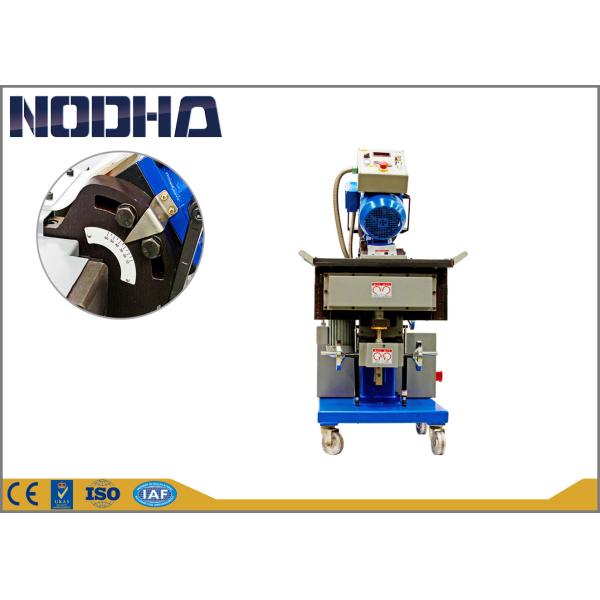

Automatic Milling Machine , Vertical Milling Machine 8 To 40 Mm Thick

Name: Automatic Milling Machine Vertical Milling Machine 8 To 40 Mm Thick
Brand: NODHA
Price: 1 USD

Cheap Automatic Milling Machine , Vertical Milling Machine 8 To 40 Mm Thick for sale

Brand Name : NODHA

Model Number : GMMA-60S

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 270 Sets Per Year

Delivery Time : 16 Working Days

Packaging Details : 90*65*114 cm Plywood Case

Motor voltage : AC 380V 3PH 50Hz

Motor power : 3.4 W

milling speed : 0-1500 mm per min

Bevel angle : 10 to 60 degree (adjustable)

Plate thick : 8 to 40mm

N.W : 220KGS

Cutter : 6 pcs

Cutter size : 63mm (dia)

Contact Now

Milling Machine For 8 To 40 mm Thick Metal Plate Edge Milling Machine Portable Beveling Machine

Introduction

GMMA-60S Automatic Edge milling machine, this machine can process plate automatically with high efficiency; cold cutting, non-oxidation on the surface; 6 pcs of milling cutter 60 mm dia, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution. Worktable height 730-760mm,

Features

Be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “V”, “Y” –shaped bevel.

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 10 - 60 deg.

Application

The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.

Automatic Milling Machine , Vertical Milling Machine 8 To 40 Mm Thick

Machine parameters

Motor voltage:AC 380V 50Hz	Motor power: 3.4 KW
motor speed:1050 r/min	bevel speed:0-1500 mm/min
single bevel width:15mm	Max bevel width: 45mm
Thickness of the plate:8~40mm	Plate bevel angle : 10~60 deg
Net weight :225kg	Mini clamping plate width: 300*200

Exhibition

Automatic Milling Machine , Vertical Milling Machine 8 To 40 Mm Thick

Certificate

Automatic Milling Machine , Vertical Milling Machine 8 To 40 Mm Thick

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
